LED Soft Module

Overview

>> Applicable scope

This technical parameter is only applicable to Kunjing Optoelectronics soft module series products.

Product Features

● 240x120mm module with optional spacing between P1.87 and P2.5 points

● The standardized size design of the module is 240mmx120mm, using 1212 and 1515 black lights and high-quality branded ICs. Low current, low heat, high contrast 5000:1, refresh rate ≥ 1920Hz, 12-16bit grayscale level, image presentation without delay or dragging phenomenon, clear image quality, and richer color levels;

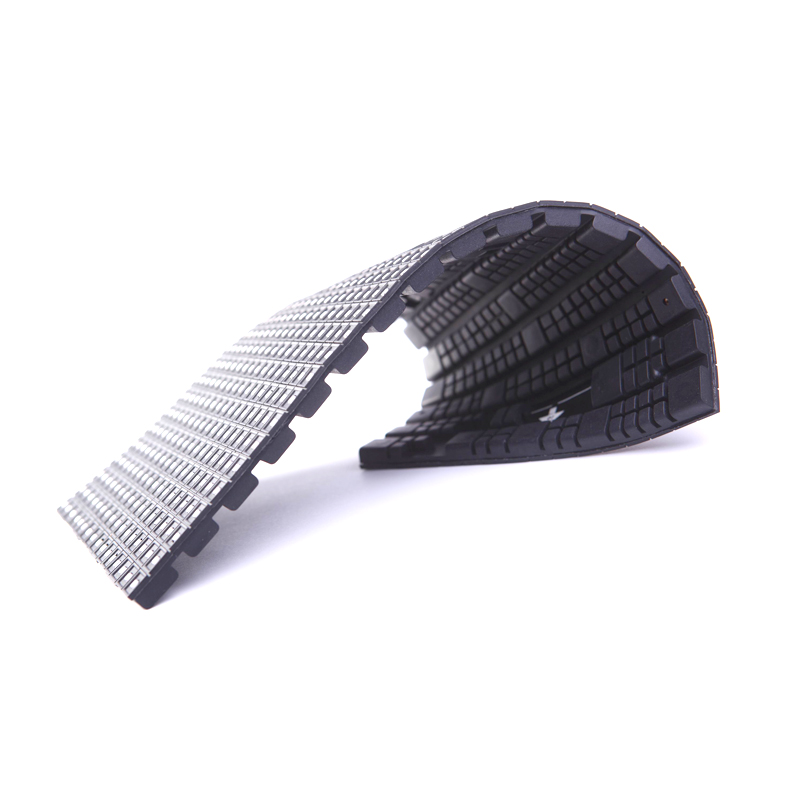

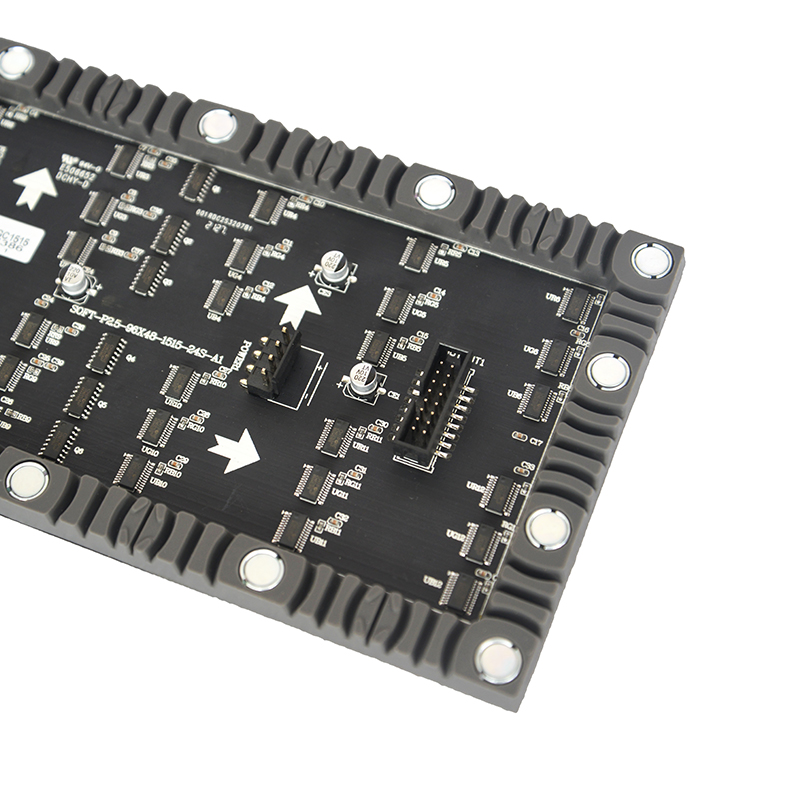

● The PCB board adopts flexible soft board, and the bottom shell is made of high-quality silicone material. The module thickness is only 8.5mm, and the ultra-thin design provides higher flexibility;

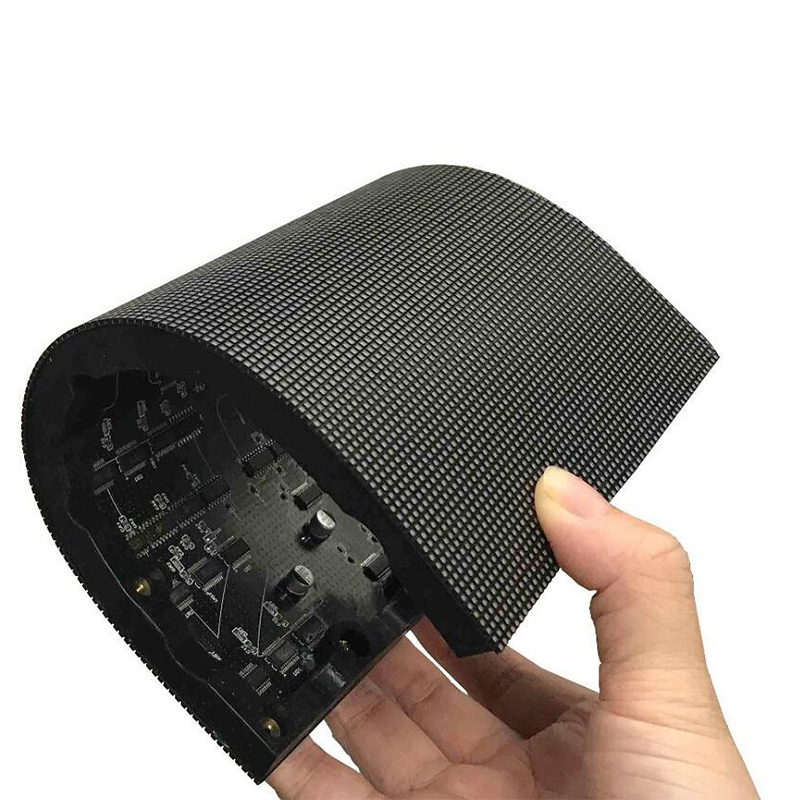

● Flexible display with a curvature of ≤ 145 ° and a viewing angle of up to 140 °, suitable for stage backgrounds, exhibition halls, monitoring, conference rooms, and other curved surfaces;;

● The supporting box structure adopts high-strength sheet metal box and segmented splicing process, effectively reducing the splicing gap of the screen body;

● The module adopts a strong magnetic adsorption installation, which can be fine tuned and has good screen flatness. The maintenance design in front of the power box can achieve front installation, and with specific tools, it can meet the maintenance needs in special scenarios.

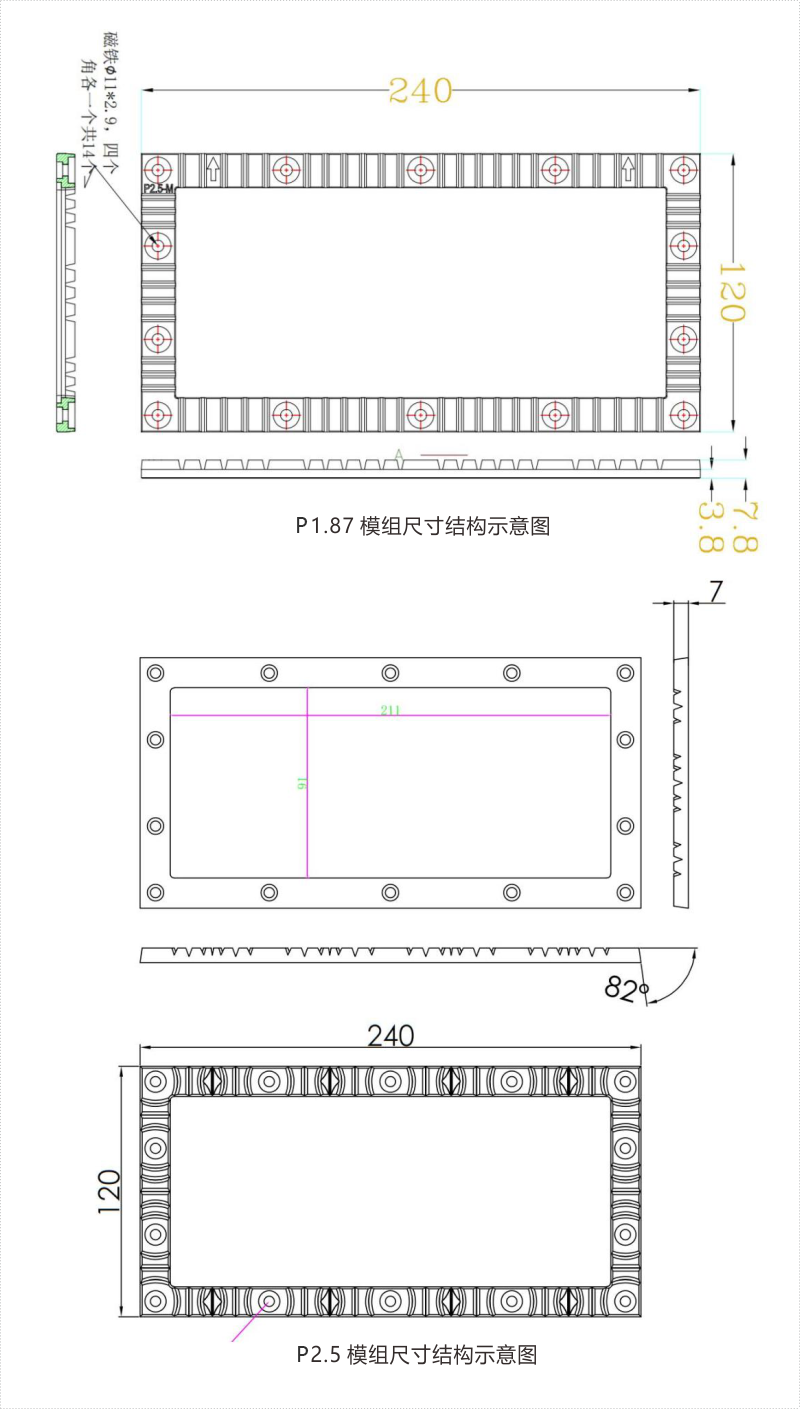

Module Size Structure

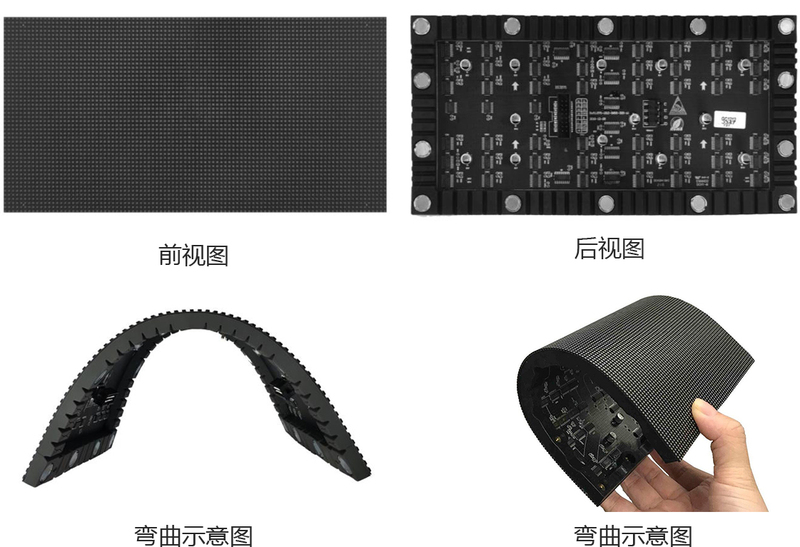

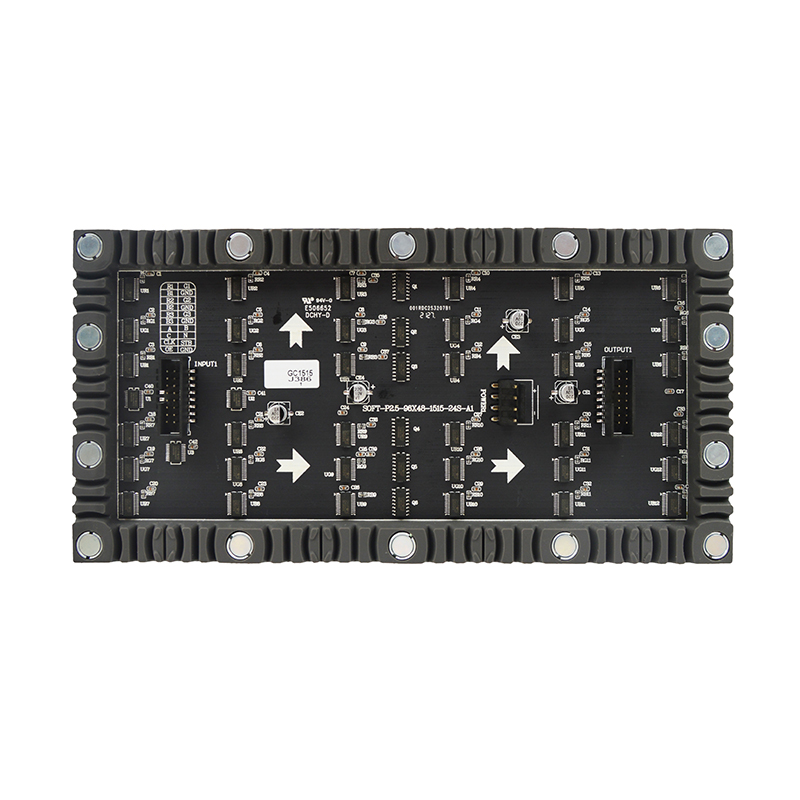

Module Appearance
