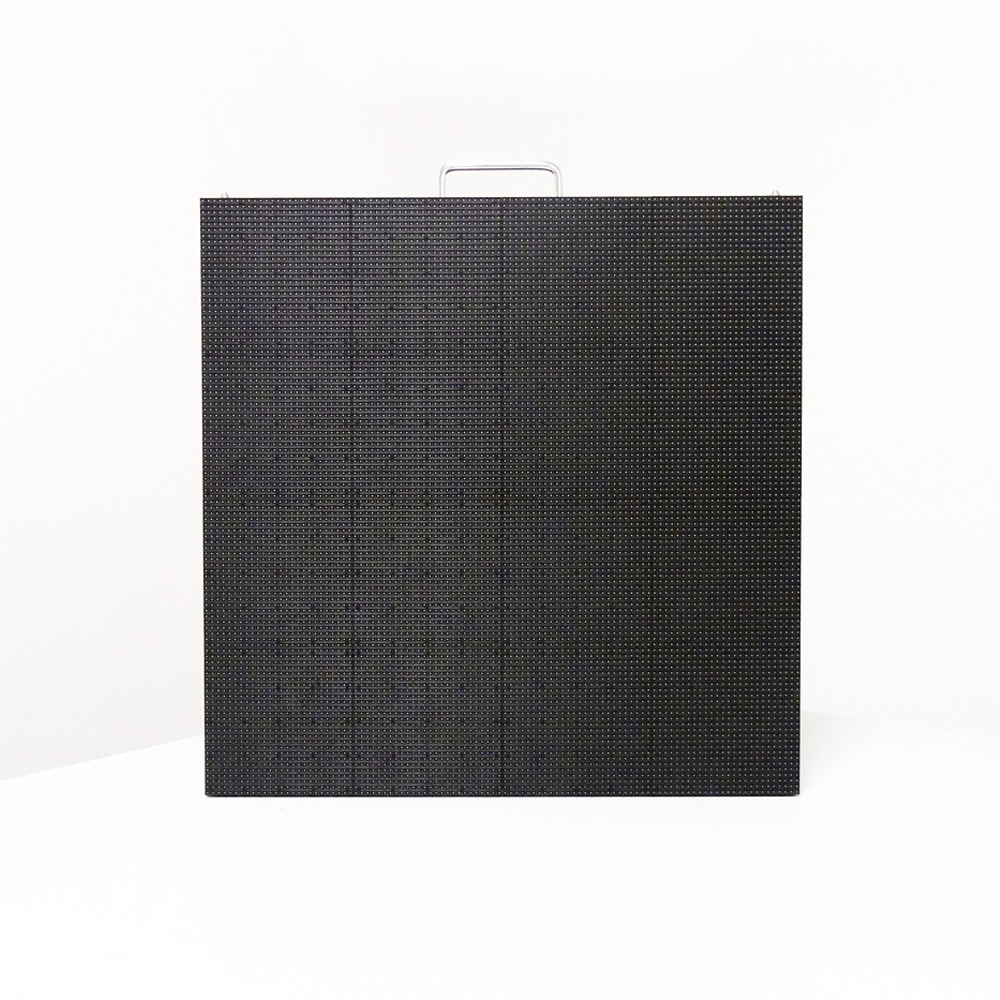

Indoor Rental 500 * 500 Series

Indoor Rental 500 * 500 Series

WeChat
QQ
copy Link
LED rental display screens require frequent movement, repeated disassembly and installation, and must adhere to the design concept of "beautiful and elegant appearance, lightweight and portable installation, stable and reliable quality". Therefore, there are considerations in product appearance design, structural design, and material selection, which are mainly used in enterprises, conference systems, exhibitions, hotels, stage backgrounds, and other fields. Kunjing Optoelectronics has strengthened the optimization of rental product applicability in the rental market. The rental products launched not only have the characteristics of ultra-thin and ultra-light, fast disassembly and assembly, flexible and convenient use, but also can provide different configurations according to different market needs.
Dot pitch 2.98mm/3.91mm/4.81mm
LED model SMD1515/SMD2121
Module resolution 84*84/64*64/52*52/dots
Module size 250*250mm
Cabinet size 500*500*80mm
Cabinet weight 7.5Kg
Cabinet material Magnesium Alloy Die-Casting
Pixel density 144400/65536/43264/dots/㎡
Brightness 1000nits
Refresh rate ≥1920Hz
Scanning method 28S/16S/13S
Average power 180/200/200W/㎡
Protection level IP31
Service life 100,000 hours
Consulting Now
Online Message
Detail

Product Features

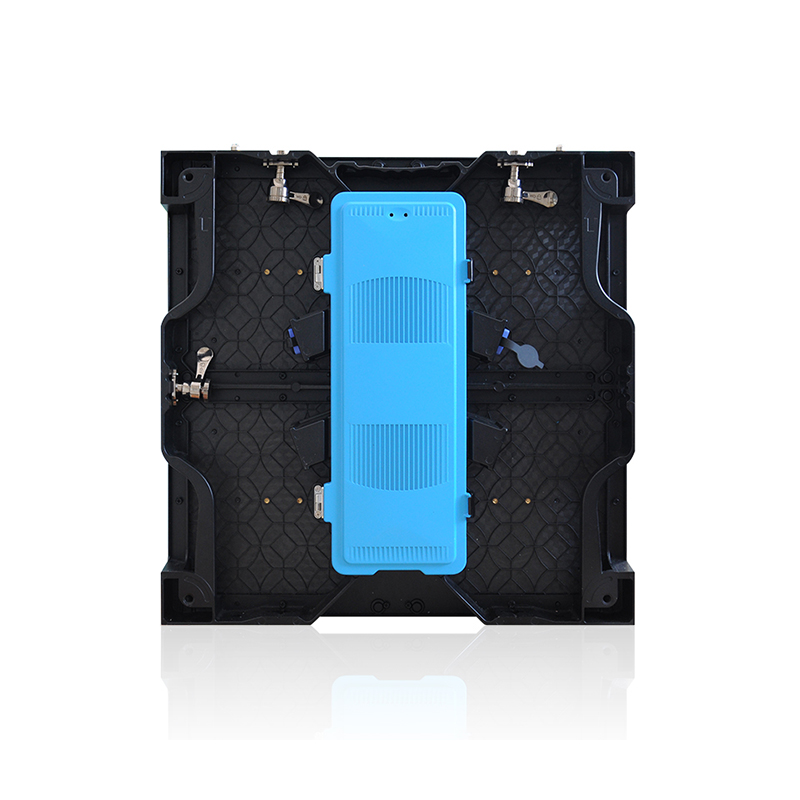

Stable stress, front and rear maintenance

High precision, simple, and super practical private mold, with collision and extrusion resistant design at the bottom of the box, ensuring stable stress on the cabinet;

● Module magnet adsorption installation, capable of front and rear maintenance;


High refresh, high grayscale

● Refreshing ≥ 3840Hz, ensuring a complete 16 bit grayscale, low brightness without color deviation, and no color blocks;

The grayscale is excessively smooth without any jumps, and there is no dark or bright phenomenon in the first row, perfectly solving the coupling phenomenon of high and low grayscale on the display screen;


Rigorous craftsmanship and good heat dissipation

The design of buckle and locking screw flat face shield ensures that the entire screen surface has no warping and excellent heat dissipation performance;

High performance PCB substrate, combined with rigorous process flow, presents the most realistic and dazzling colors.


Application

LED rental display screens are mainly used in high-end entertainment venues, theme parks, bars, discos, auditoriums, theaters, large-scale song and dance parties, fashion conferences, digital stages in film and television studios, building curtain walls, and other places.
